Overview


  • Top hung, double glazed framed panels
  • Manual or semi-electric operation
  • Unlimited wall width of individual framed glass panels.
  • Sound reduction rating of up to RW 46dB (laboratory testes)
  • Frame finished in powder coated to any RAL colour
  • Track system using single or twin point suspension
  • Fully glazed access door available
  • Options include semi-electric operation with slimmer frame and integral blinds

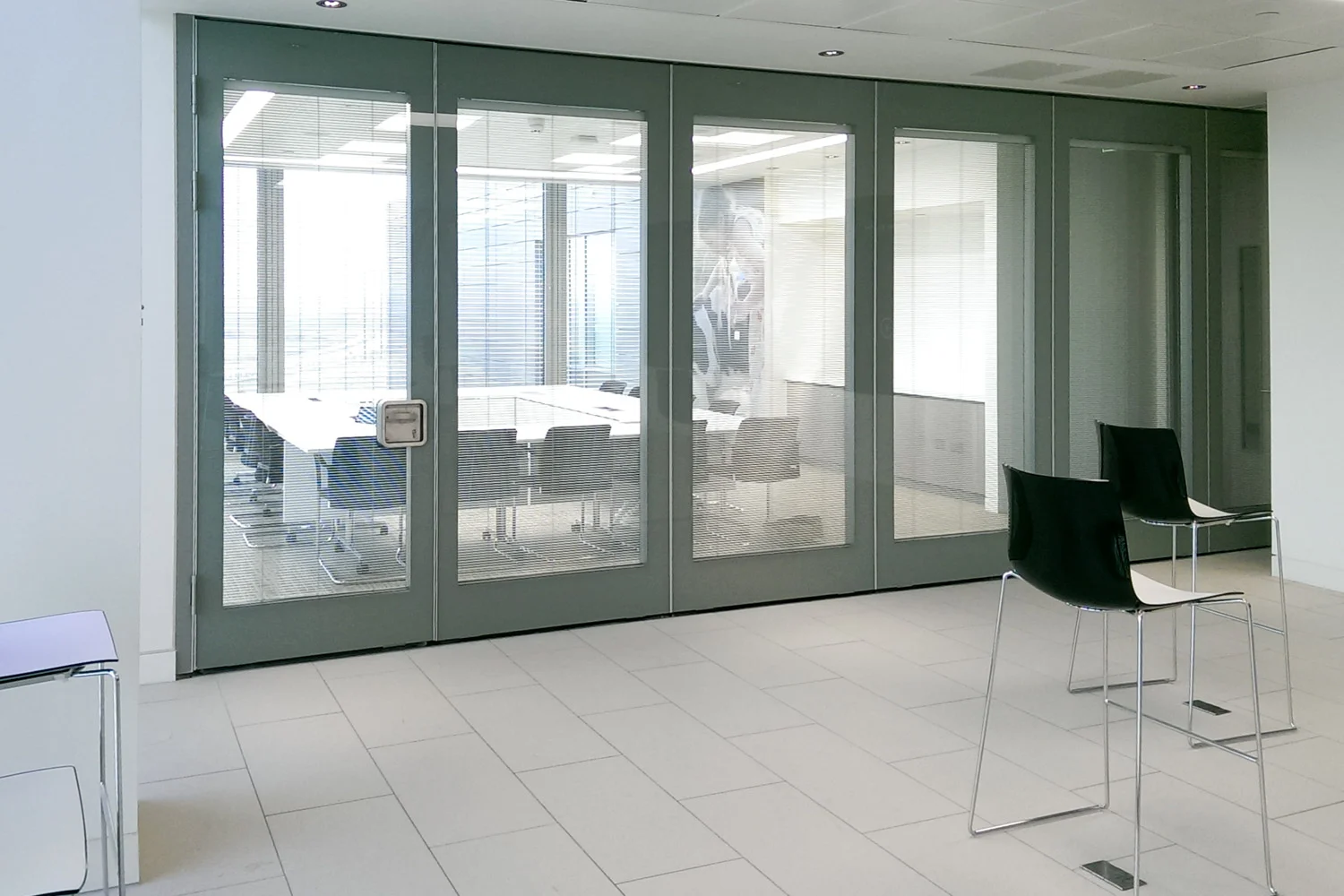

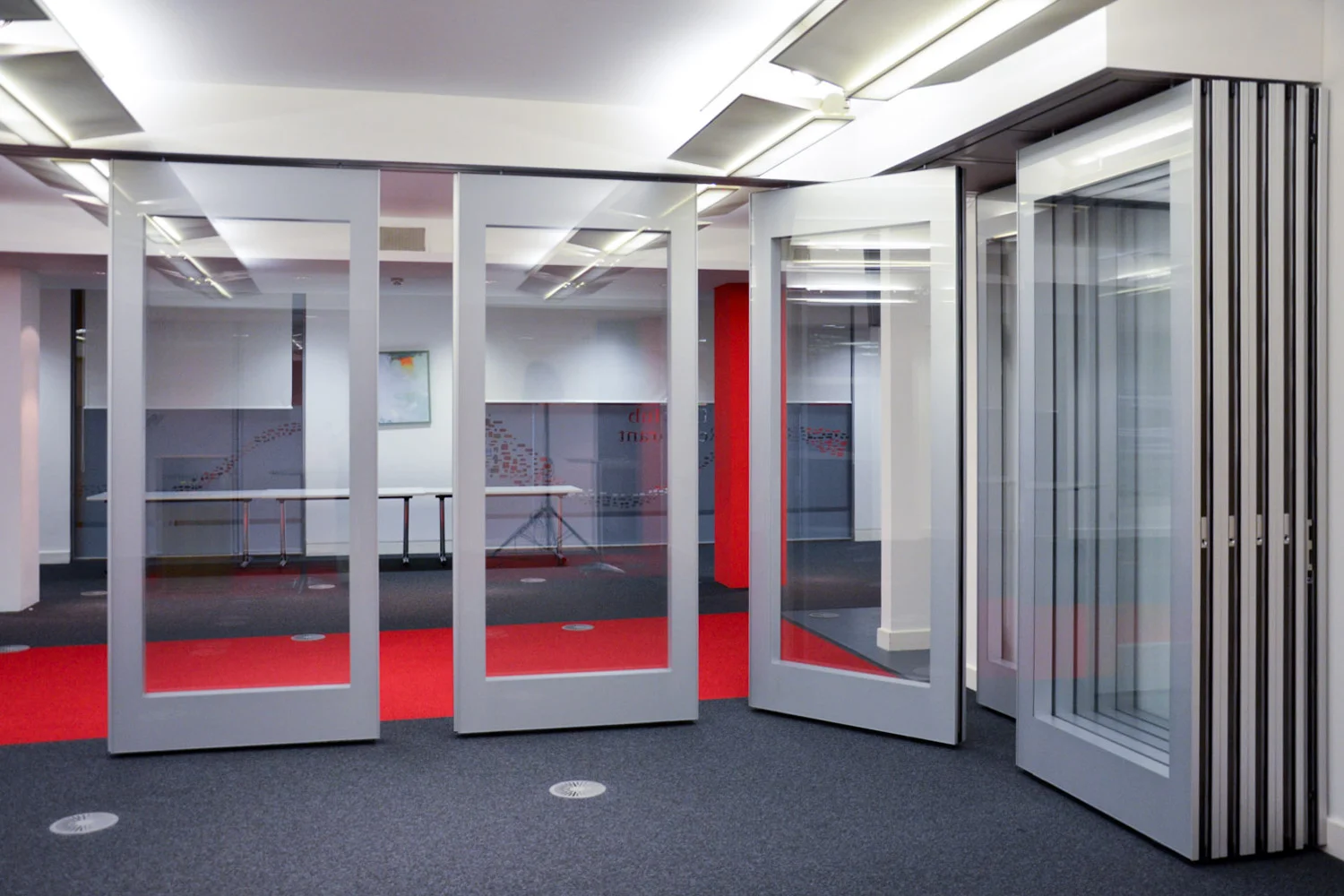

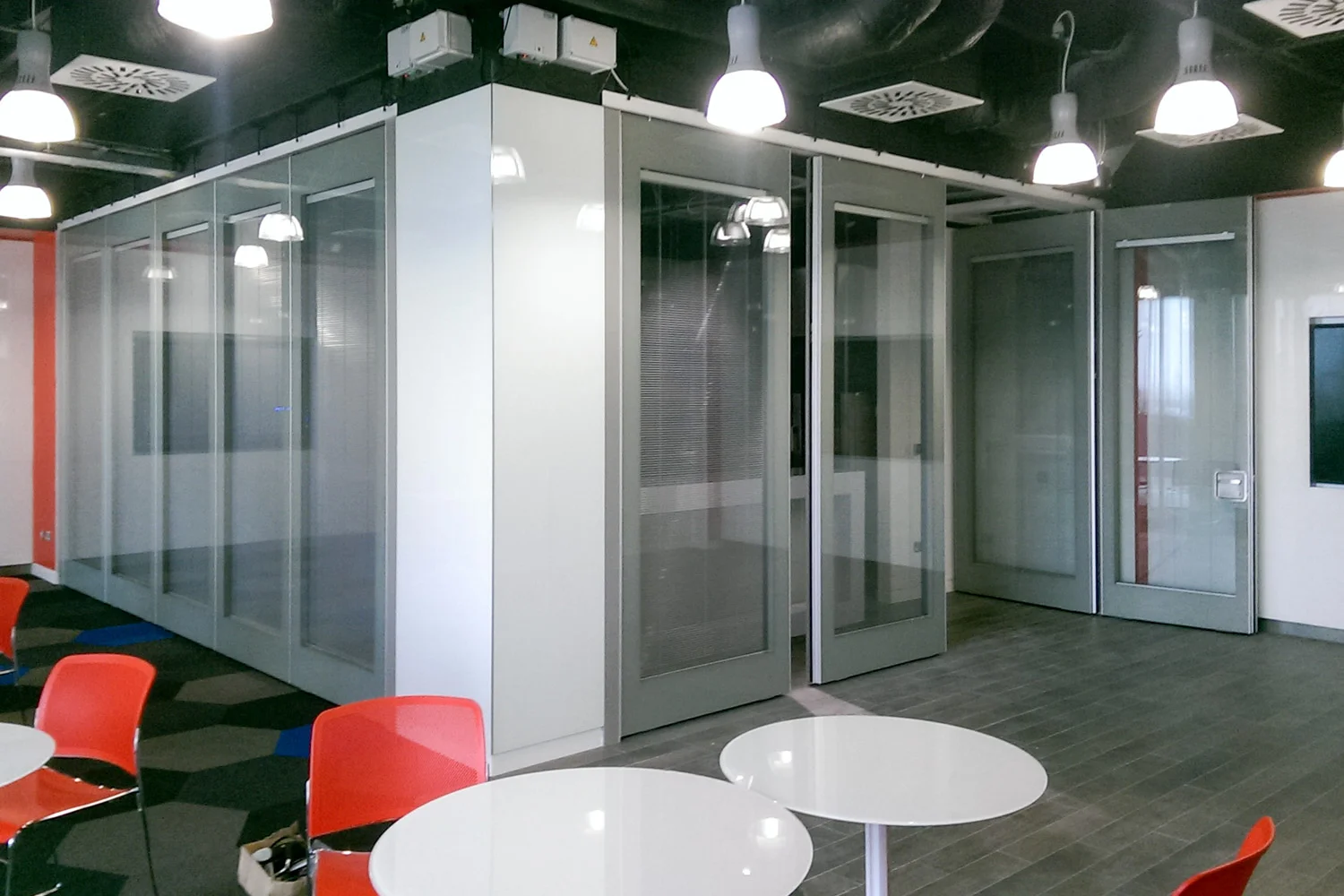

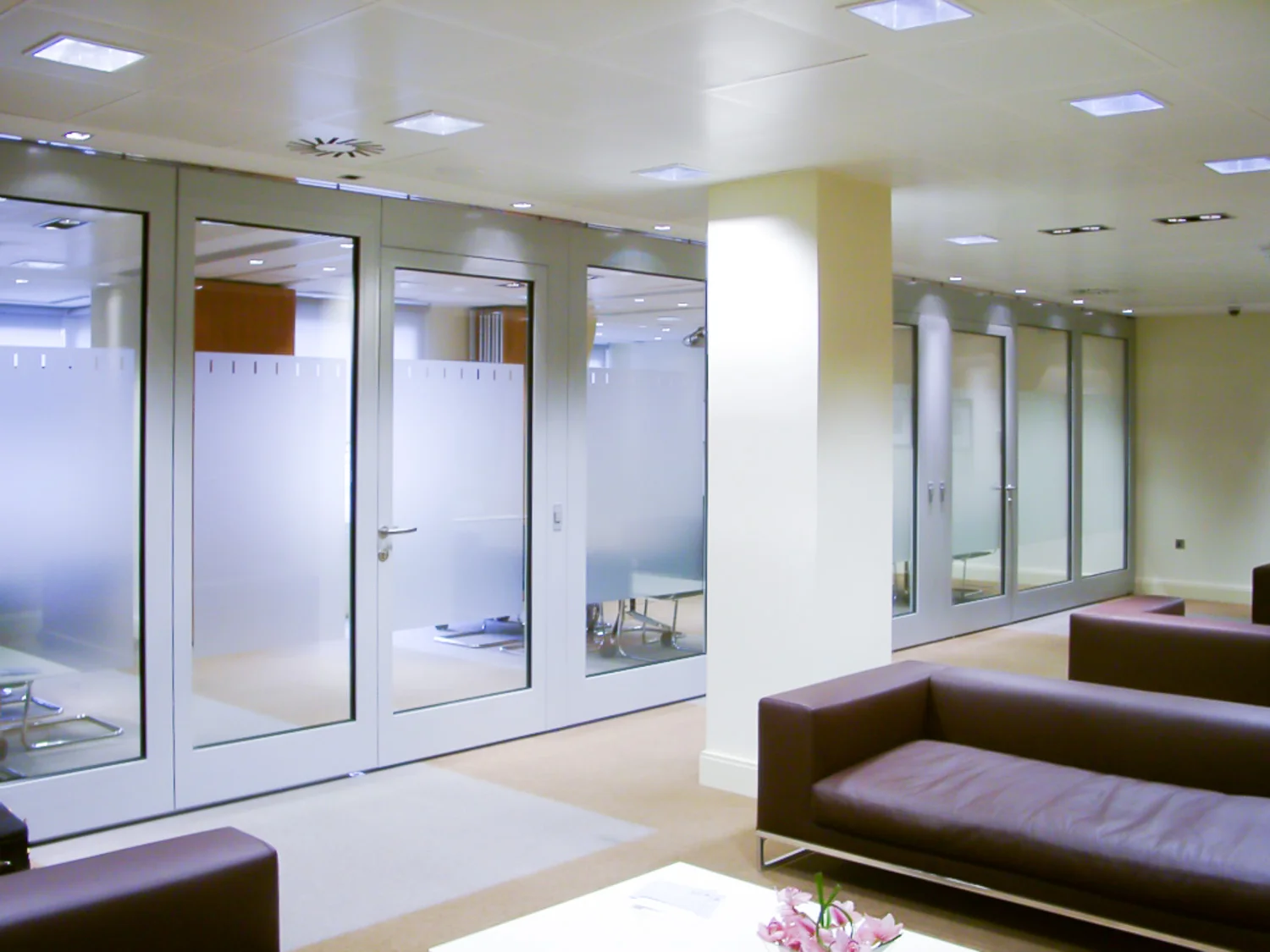

Gallery




Features


Height Up to 1,500 - 3,500mm
Panel Width Upto 600 - 1,240mm
Sound Reduction Rw 46dB

Common Sounds Sound Level (dB)
Threshold of Hearing 0
Whisper 13
Quiet Conversation 20
Private Office 30
Quiet Radio 40
Average Business Office 50
Limit for Quiet Office Environment 55
Normal Conversation 60
Limit for Normal Office Enviroment 70
Amplified Speech / Road Traffic / Loud Music 80
Limit for Factories 85
25 Piece Orchestra / Shouting Voice 1m 90
Continuous Exposure Dangerous to Hearing 95
Low Flying Aircraft / Noisy Plant 100
Hard Rock Band, Noisy Plant 115
Jet Aircraft Taking Off 20m Distance 120
Jack Hammer 1m Distance 125
Threshold of Pain 130

Panel Thickness 100mm
Show More
Seal Type Manual or electric
Frame Construction Aluminium
Board Material 8mm safety glass carried by the construction
Verticle Profiles Aluminium, anodized with sealing profiles
Pressure Sleeves Aluminium, black with double sealing profiles
Panel Weight Approximately 50kg/m2
Pass Door Panels Single door in panel
Fixed single door


Drawings




Specification




Stacking Options



'EE' Junction Panel with 'K' & 'E' Track

'Z' Track

Double 'K' Track

Inset Pass Door on 'K' Track

Remote 'K' Track

DT Pass Door on 'E' Track

'E' Track

Offset 'K' Track
