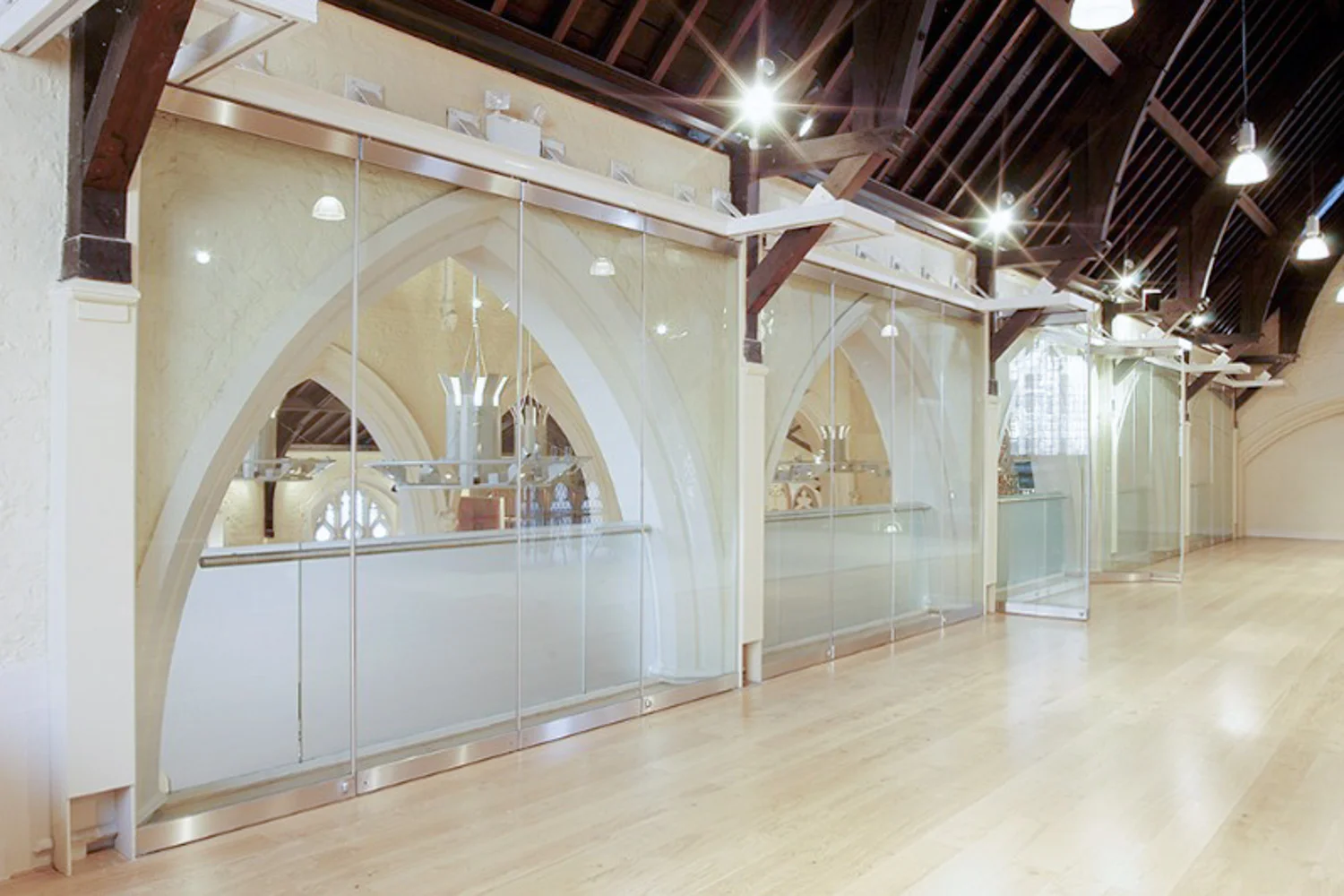

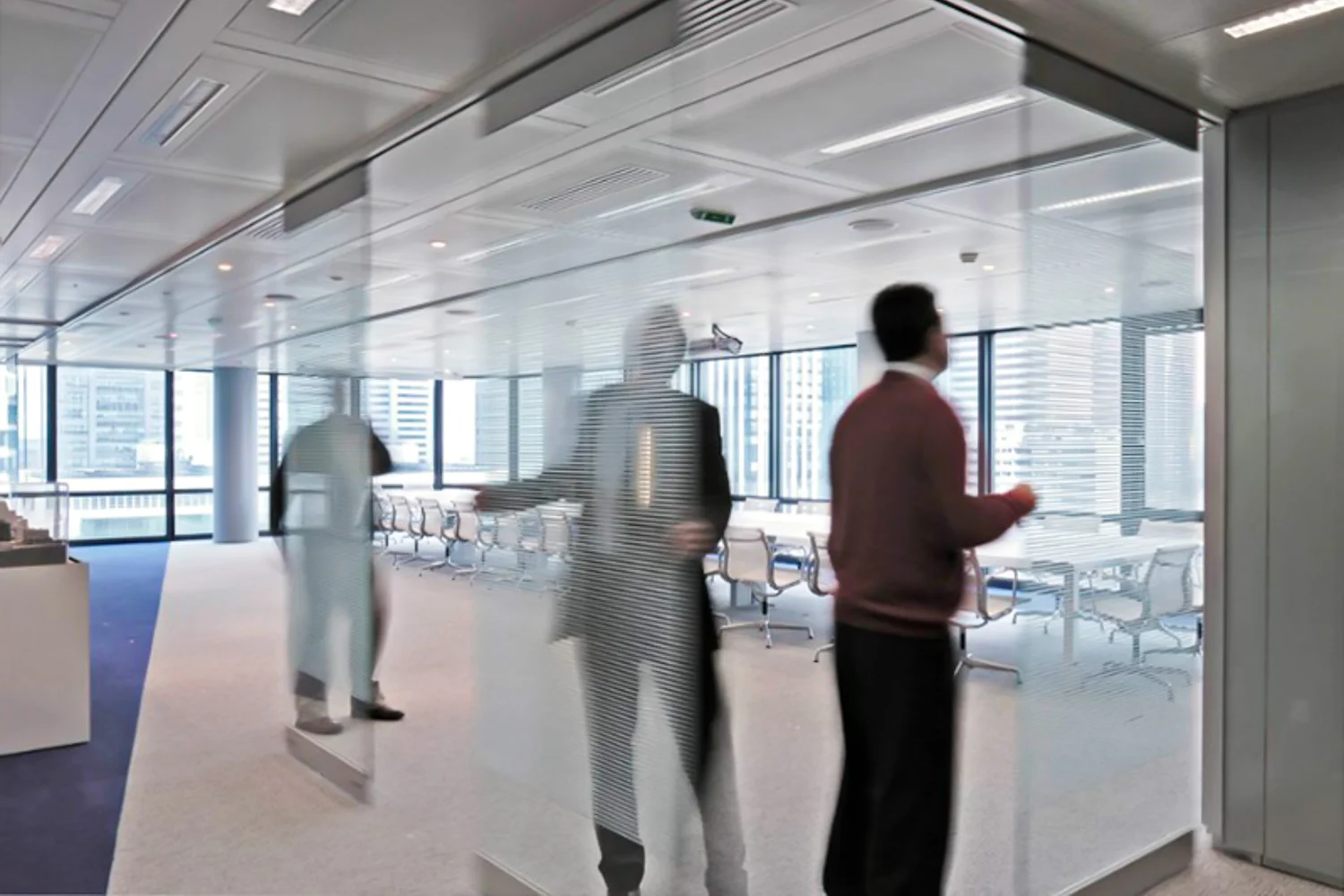

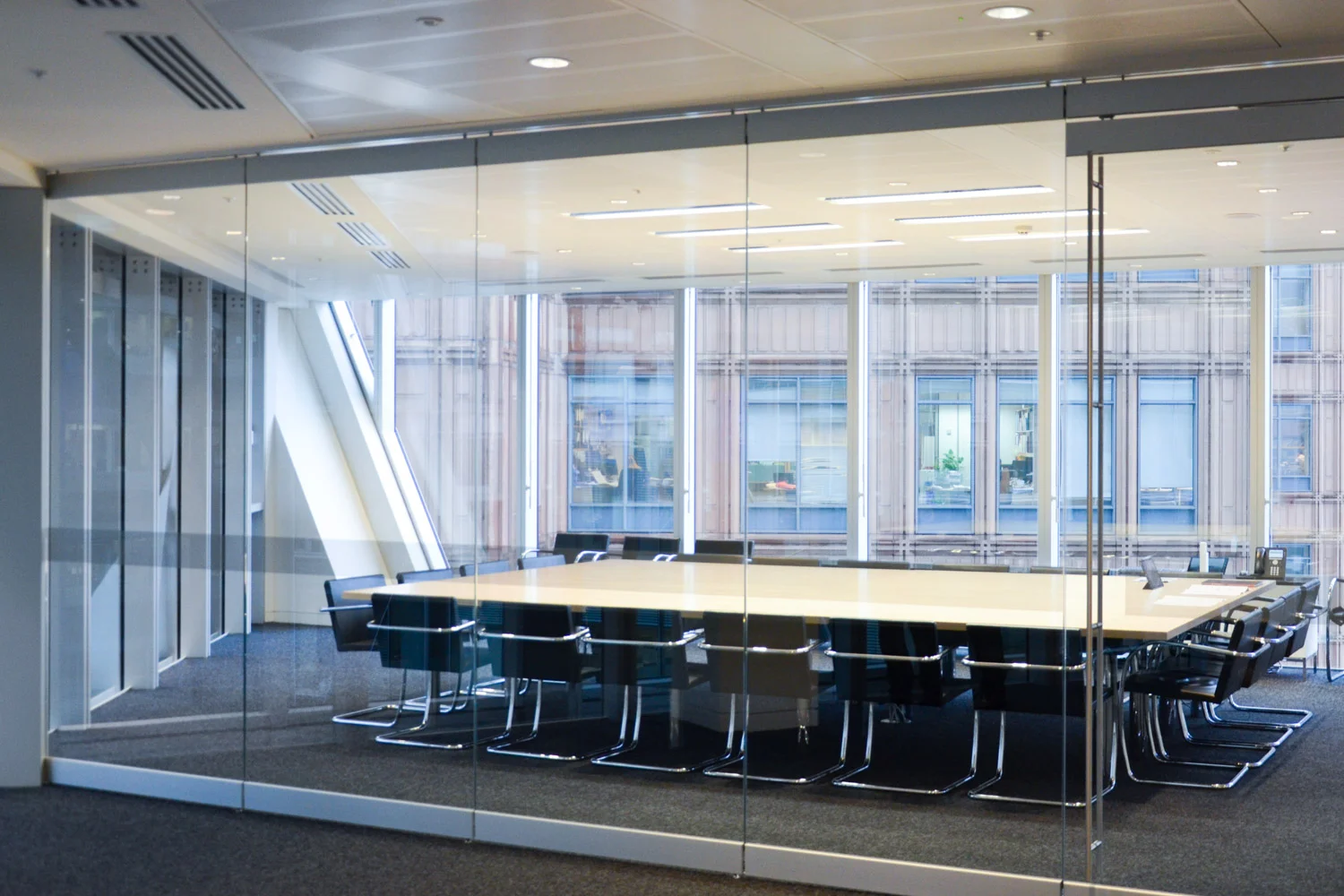

Type GG system offers the clearest possible unbroken vision in a sliding partition, ideal for situations where space needs to be divided into inviting, viewable rooms, such as shop fronts, showrooms, waiting areas, church halls and other areas that do not necessarily require sound reduction properties.
The all glass top hung individual panels can be moved manually or electronically without the need for floor tracks. All panels are locked to each other and/or the floor offering security and stability.
|Height||Up to 4,000mm|
|Panel Width||Upto 1,200mm|
|Sound Reduction||Non acoustic
Movawall systems offer the highest level of acoustic ratings available. Sound reduction is achieved using dense cladding, adding internal insulation materials within the panels and by using deep seated mechanically operated retractable seals set to a high sealing pressure applied by worm screw drive and deep interlocking vertical seals.
Special panel surface finishes can help maintain or improve the acoustic qualities of existing sound conditions. Panel faces can vary from acoustically absorbent slotted boards to improve sound absorption levels of a room to the use of soft fabrics to control levels of noise reverberation. Our walls are constantly being developed and confirmed by recognised testing authorities to achieve higher acoustic levels and greater client satisfaction.
Walls are measured in accordance with DIN EN 20 140-3. Please contact our technical department for any assistance required and further information.
|Panel Thickness||32mm rail/10-12mm toughened glass|
|Suspension method||Top hung, no floor track|
|Operation Mode||Manual/fully electric|
|Panel Type||Indivudual panel|
|Seal Type||Optional sweep strips|
|Panel Construction||Top and bottom rail only|
|Panel Weight||Max 40kg/m2|
|Pass Door Panels||Full height only single or double|
|Usage||Internal and external|
|Stacking Options||Z or K track, twin point roller|
|Panel Edges||Glass edges polished|
|Rail Finsihes||SAA, stainless Steel or Powder coated to an RAL colour|
|Other Options||Curved layouts|
