Overview



Movawall Type G100 is a Fully Glazed Movable Acoustic Wall System. Previously clients needed to choose between a solid panel system with sound reducing properties and a glazed non acoustic system. G100 now provides a solution where light and high acoustic performance is combined in one complete system.

G100 can be integrated with our solid type 100SE system to create a clear visual separation or a solid look when privacy is needed or when a pass door panel is required. G100 is also available with internal blinds housed within the double glazed unit, which are electrically operated.

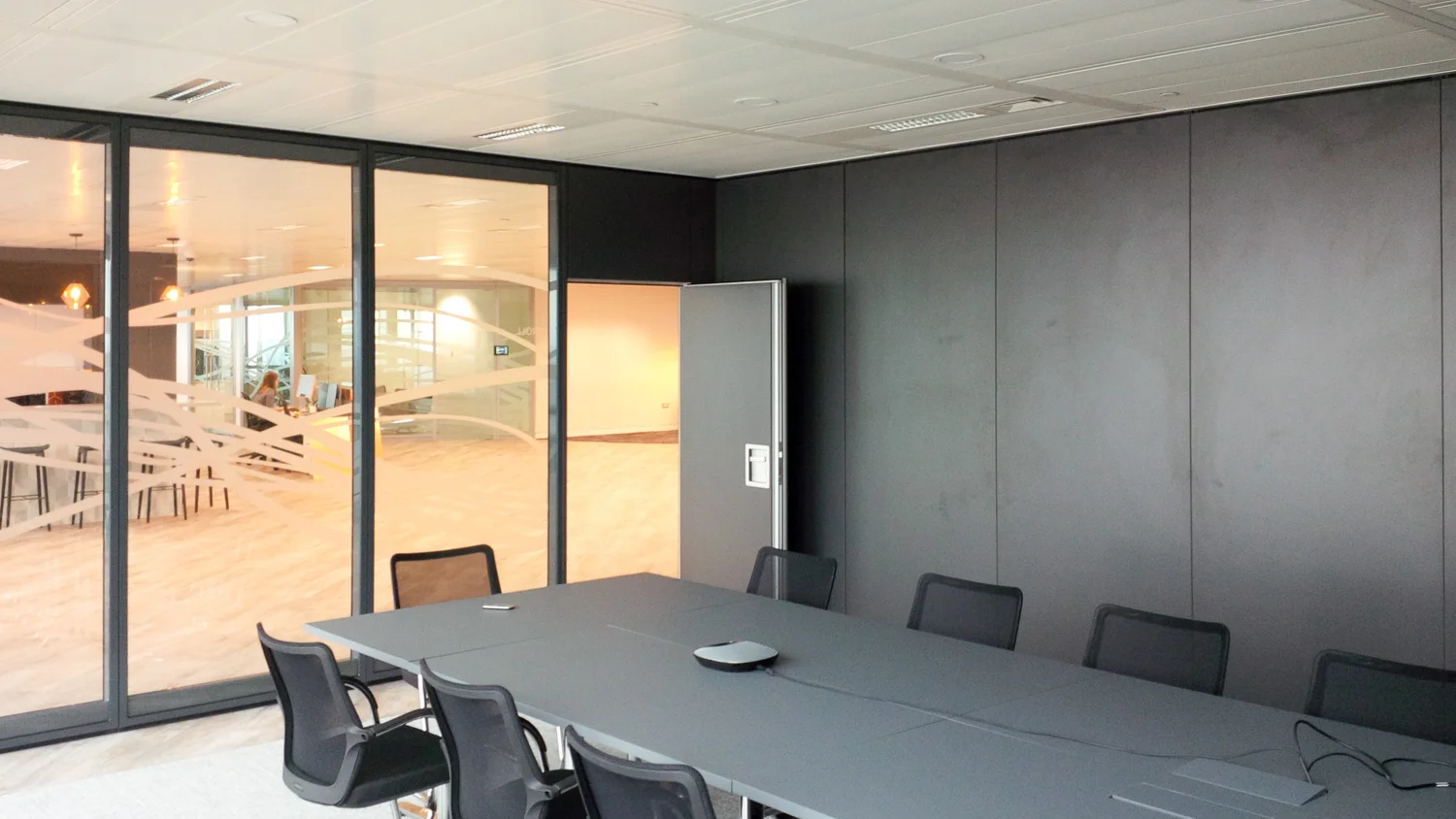

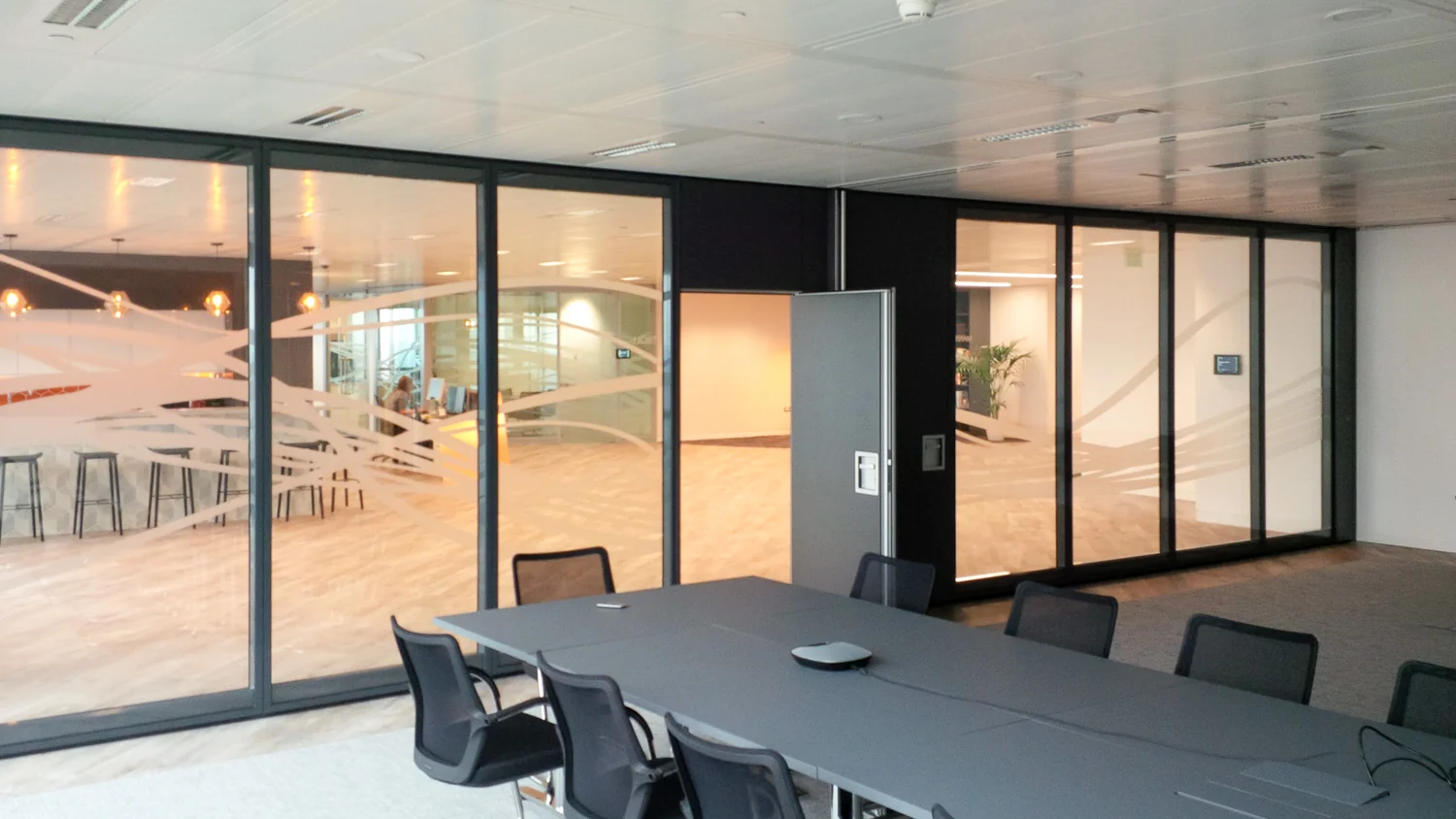

Type G100 paired with Type 100 at the QEII Centre, Westminster



Gallery




Features


Height Up to 4,000mm
Panel Width Upto 1,200mm
Sound Reduction Up to Rw 54dB

Common Sounds Sound Level (dB)
Threshold of Hearing 0
Whisper 13
Quiet Conversation 20
Private Office 30
Quiet Radio 40
Average Business Office 50
Limit for Quiet Office Environment 55
Normal Conversation 60
Limit for Normal Office Enviroment 70
Amplified Speech / Road Traffic / Loud Music 80
Limit for Factories 85
25 Piece Orchestra / Shouting Voice 1m 90
Continuous Exposure Dangerous to Hearing 95
Low Flying Aircraft / Noisy Plant 100
Hard Rock Band, Noisy Plant 115
Jet Aircraft Taking Off 20m Distance 120
Jack Hammer 1m Distance 125
Threshold of Pain 130

Glass Thickness 4-10mm
Show More
Suspension method Top hung, no floor track
Operation Mode Semi-electric (with manual overide)
Panel Type Indivudual panel
Seal Type Electronically operated automatic seals
Panel Construction Glass with aluminium frame
Panel Weight Up to 40kg/m2

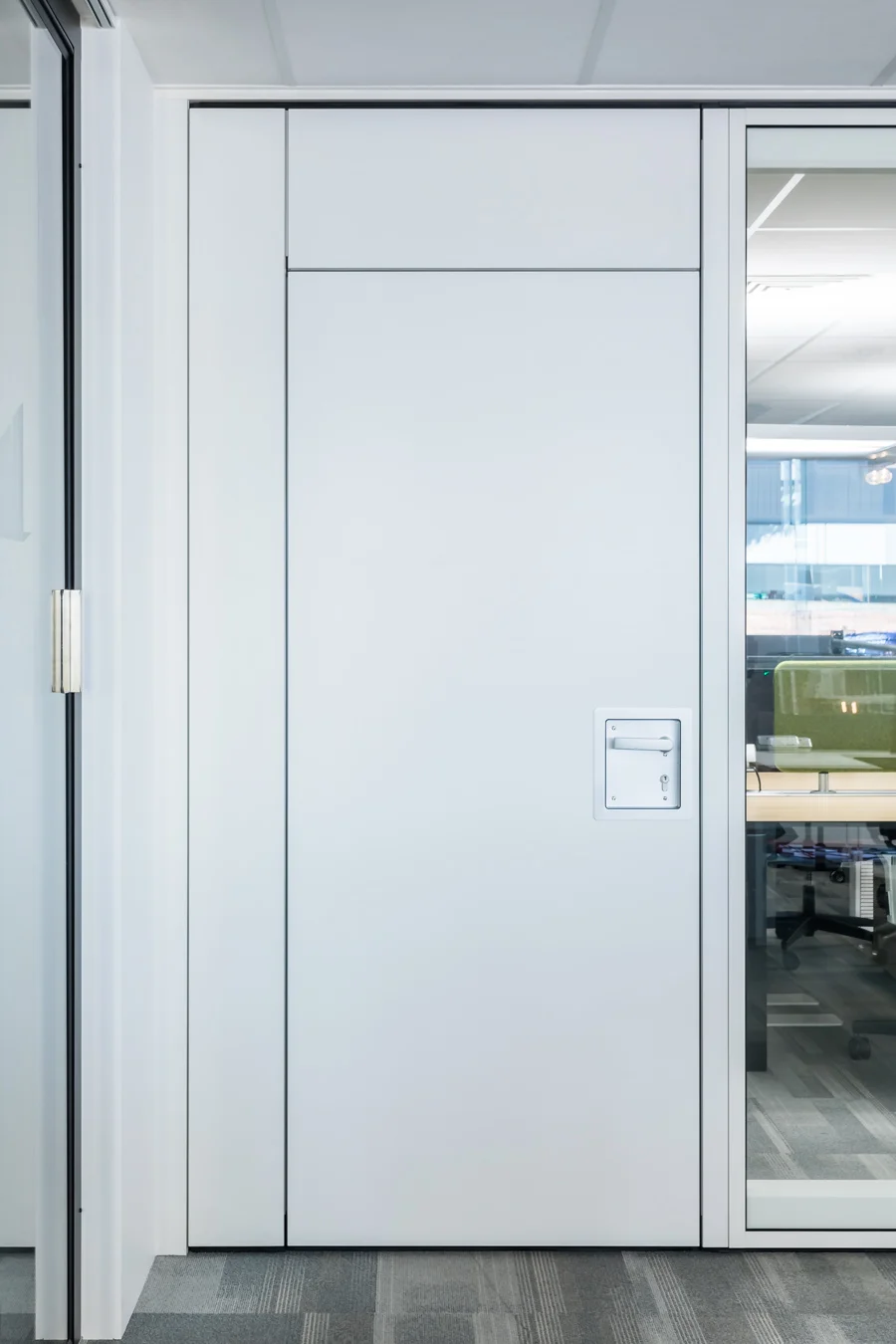

Pass Door Panels Single Inset
Usage Internal
Stacking Options TL1 ('E' system) single point roller
TL2 (‘Za’ system) twin point roller
TL3 (‘Zb’ system) twin point roller
TL4 (‘Z’ system) twin point roller
TL5 (‘K’ system) twin point roller
TL6 (‘K’ system) twin point roller
TL7 (‘K’ system) twin point roller
TL8 (‘K’ system) twin point roller
Panel Edges 33mm to all sides
Panel Edge Finishes Standard colours Silver or White, or to chosen RAL colour
Other Options Automatic internal blinds


Drawings




Specification




Stacking Options



'EE' Junction Panel with 'K' & 'E' Track

'Z' Track

Double 'K' Track

Inset Pass Door on 'K' Track

Remote 'K' Track

DT Pass Door on 'E' Track

'E' Track

Offset 'K' Track
