Overview



Movawall Type 200 is a sliding folding partition system of purpose made flat panels hinged together, to slide and fold to one or both sides within an alternative opening. Available primarily as a floor supported bottom roller system or as a top hung alternative option.

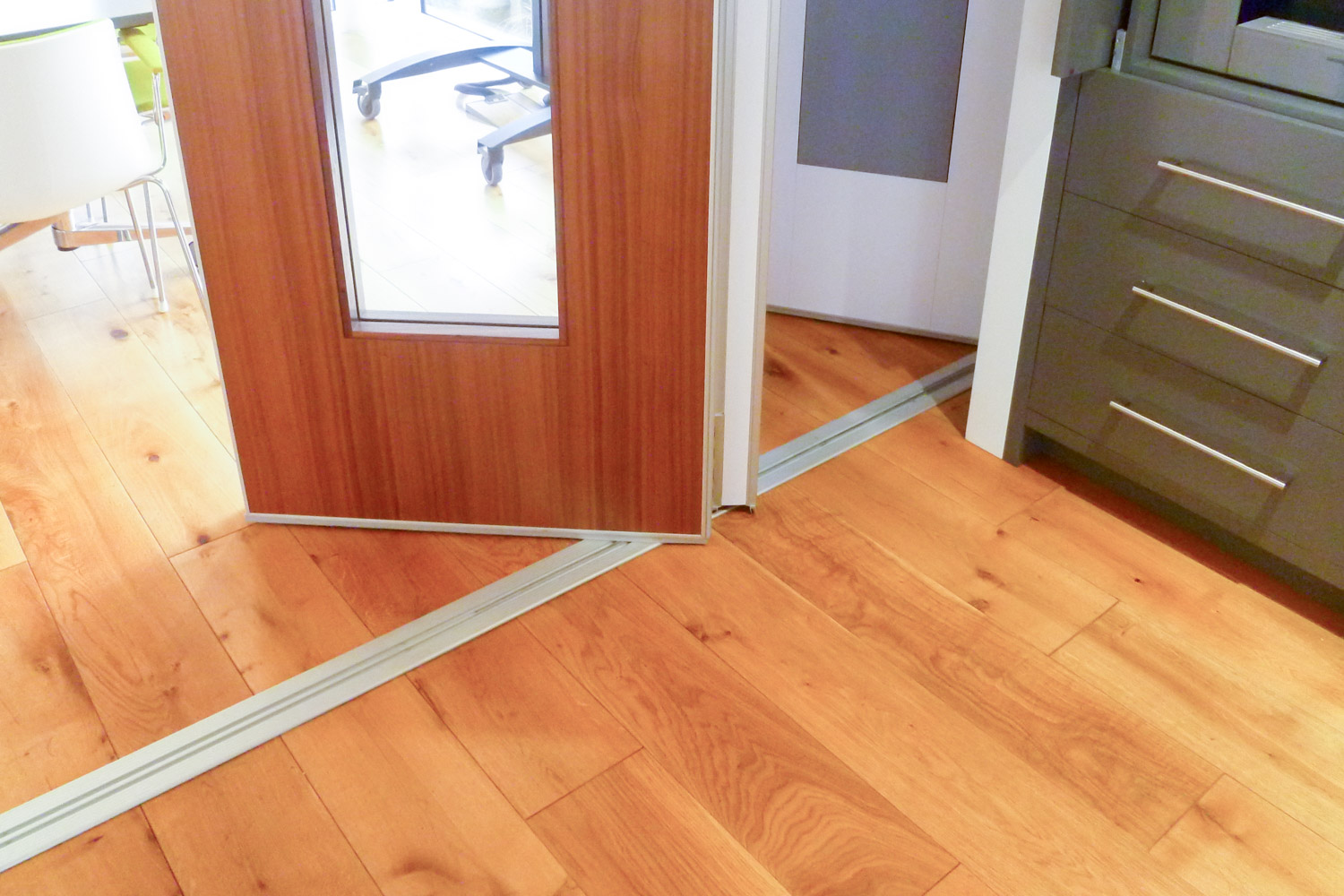

Panels have extra stability by means of a locking arrangement. Each alternate panel contains an espagnolette bolt mechanism operated via a detachable handle at a convenient height from the floor. The locking pin engages the floor rail and top track to ensure the panels close flat, flush and are rigid. The leading panel in the opening can be used as a full heigh pass door if required. Pass doors have flush pull handles and roller catch fitted; a lock can also be fitted.

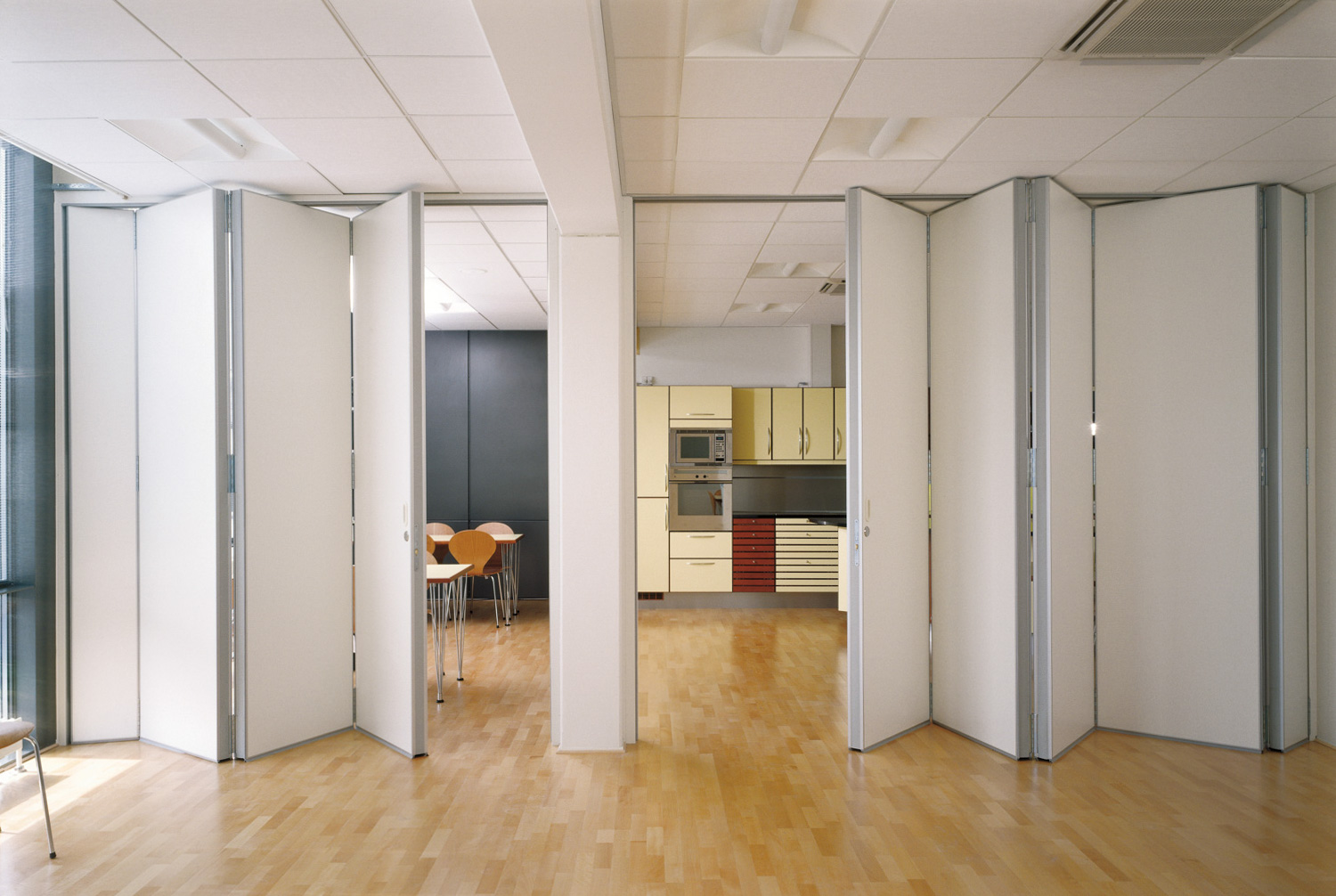

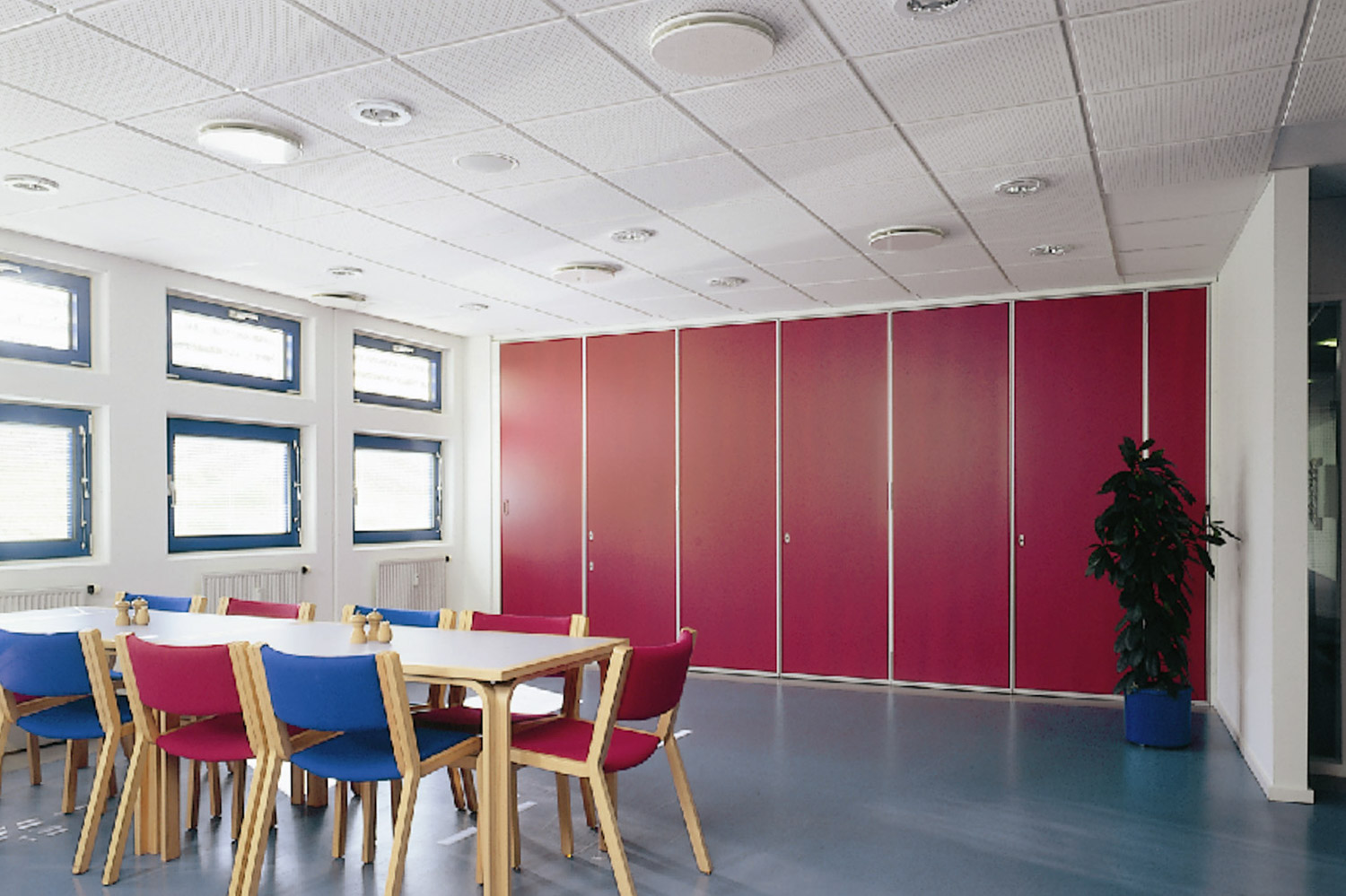

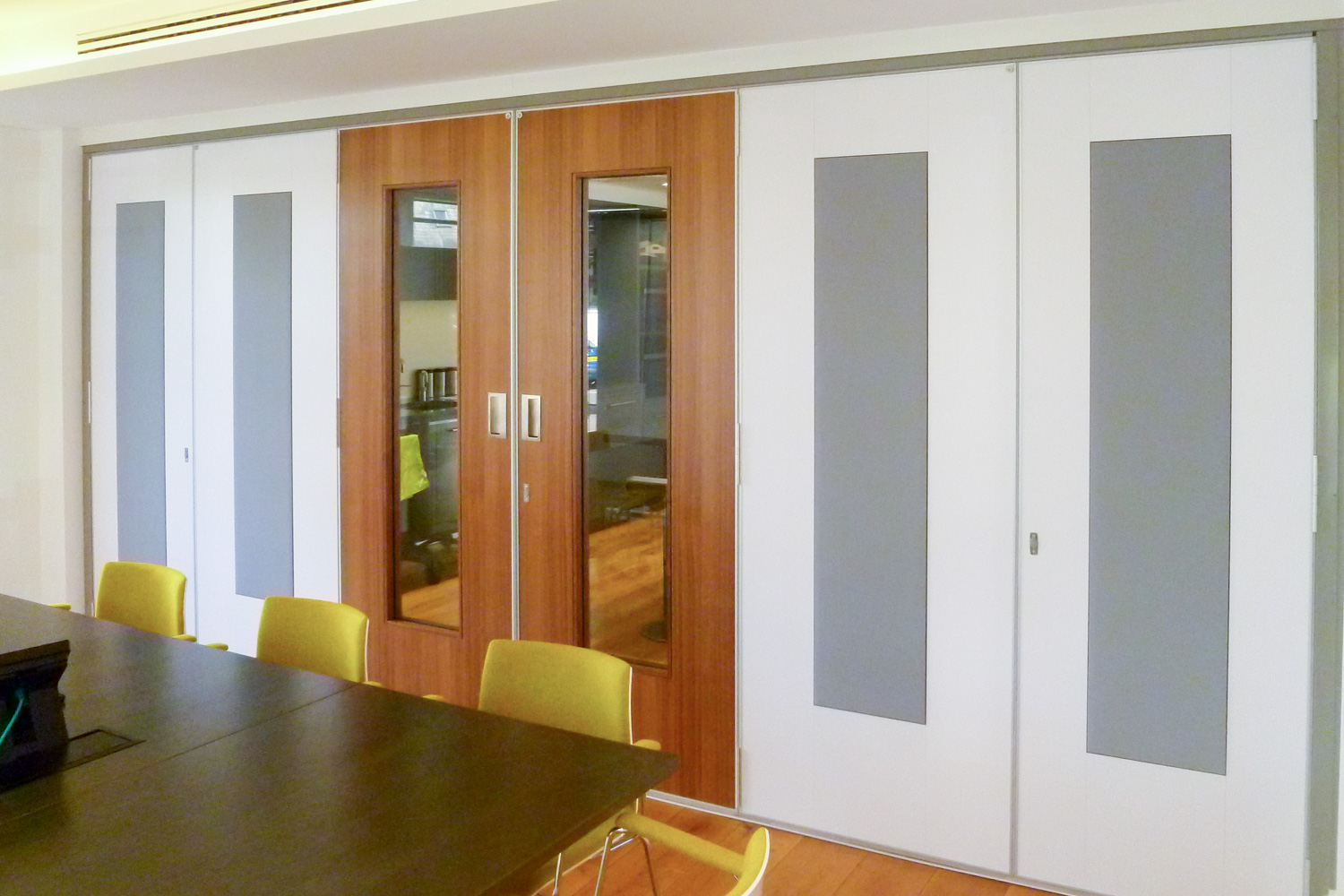

Gallery




Features


Height Up to 6,000mm
Panel Width Up to 900mm
Sound Reduction Up to Rw 52dB

Movawall systems offer the highest level of acoustic ratings available. Sound reduction is achieved using dense cladding, adding internal insulation materials within the panels and by using deep seated mechanically operated retractable seals set to a high sealing pressure applied by worm screw drive and deep interlocking vertical seals.

Special panel surface finishes can help maintain or improve the acoustic qualities of existing sound conditions. Panel faces can vary from acoustically absorbent slotted boards to improve sound absorption levels of a room to the use of soft fabrics to control levels of noise reverberation. Our walls are constantly being developed and confirmed by recognised testing authorities to achieve higher acoustic levels and greater client satisfaction.

Walls are measured in accordance with DIN EN 20 140-3. Please contact our technical department for any assistance required and further information.

Common Sounds Sound Level (dB)
Threshold of Hearing 0
Whisper 13
Quiet Conversation 20
Private Office 30
Quiet Radio 40
Average Business Office 50
Limit for Quiet Office Environment 55
Normal Conversation 60
Limit for Normal Office Enviroment 70
Amplified Speech / Road Traffic / Loud Music 80
Limit for Factories 85
25 Piece Orchestra / Shouting Voice 1m 90
Continuous Exposure Dangerous to Hearing 95
Low Flying Aircraft / Noisy Plant 100
Hard Rock Band, Noisy Plant 115
Jet Aircraft Taking Off 20m Distance 120
Jack Hammer 1m Distance 125
Threshold of Pain 130

Panel Thickness 80mm
Show More
Suspension method Floor supported with top guide or top hung
Operation Mode Manual
Panel Type Hinged
Seal Type Fixed top and bottom sweep strips
Panel Construction Aluminium frame
Panel Weight Up to 42kg/m2
Pass Door Panels Full height only single or double
Usage Internal
Stacking Options Centre fold
End fold
Panel Edges Exposed SAA or powder coated
Panel Finishes Laminate
HP Laminate
Veneer
Fabric
Steel


Our Type 200 provides a wide choice of panel finishes to suit most specifiers requirements. Finishes include a full range of high quality veneers, melamine, laminates, steel sheet and texture coverings. Special finishes include joinery cladding, mouldings and inserts, mirrors or clients own purpose made panelling.

Our experts are always available to explain the wide range of material options, including the best choice to meet particular needs as well as to discuss the choice of colours and designs that can match or exceed the clients design expectations. We are also able to incorporate custom made finishes and designs wherever it is practical to do so.

We can provide installations that do not just provide a practical solution to space problems, but enhance the room aesthetically as well, even providing adaptable surfaces for other uses such as displaying information, screen projection or writing on.

Other clients finishes, added materials or even custom made illustrations incorporated into the panel construction, are just some of the many ways to match almost any taste. They can also brighten up an area and enliven a wall that might otherwise only be utilised for its functional qualities as a room divider.

Other Options Corner
Junction
Glazed cut outs


Drawings



All technical drawings are subject to change.



Specification




Stacking Options



Endfold Single Unit

Centrefold Bi-Parting

Centrefold Single Unit

Endfold Bi-Parting
