Overview

Movawall Type 100 is the top of the range and market leader in the world of movable walls. It consists of individually operated top hung panels requiring no floor tracks. Purpose made panels can be manufactured to clients specific requirements, offering total space flexibility, long lasting use and high standards of finishes, sound reduction and durability.

The Type 100 is ideal for use in hotels, conference centres, lecture theatres, civic halls, meeting rooms and office environments. It is particularly adaptable to the demands of complex multi- functional usage requirements for both corporate and public environments regardless of size, finish or acoustic properties.

Type 100 at the QEII Centre, Westminster

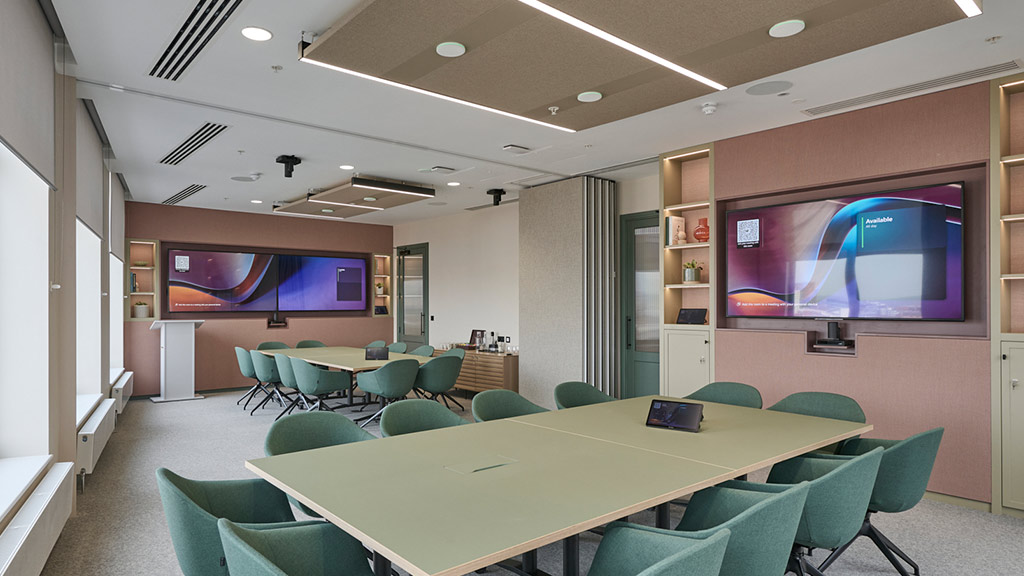

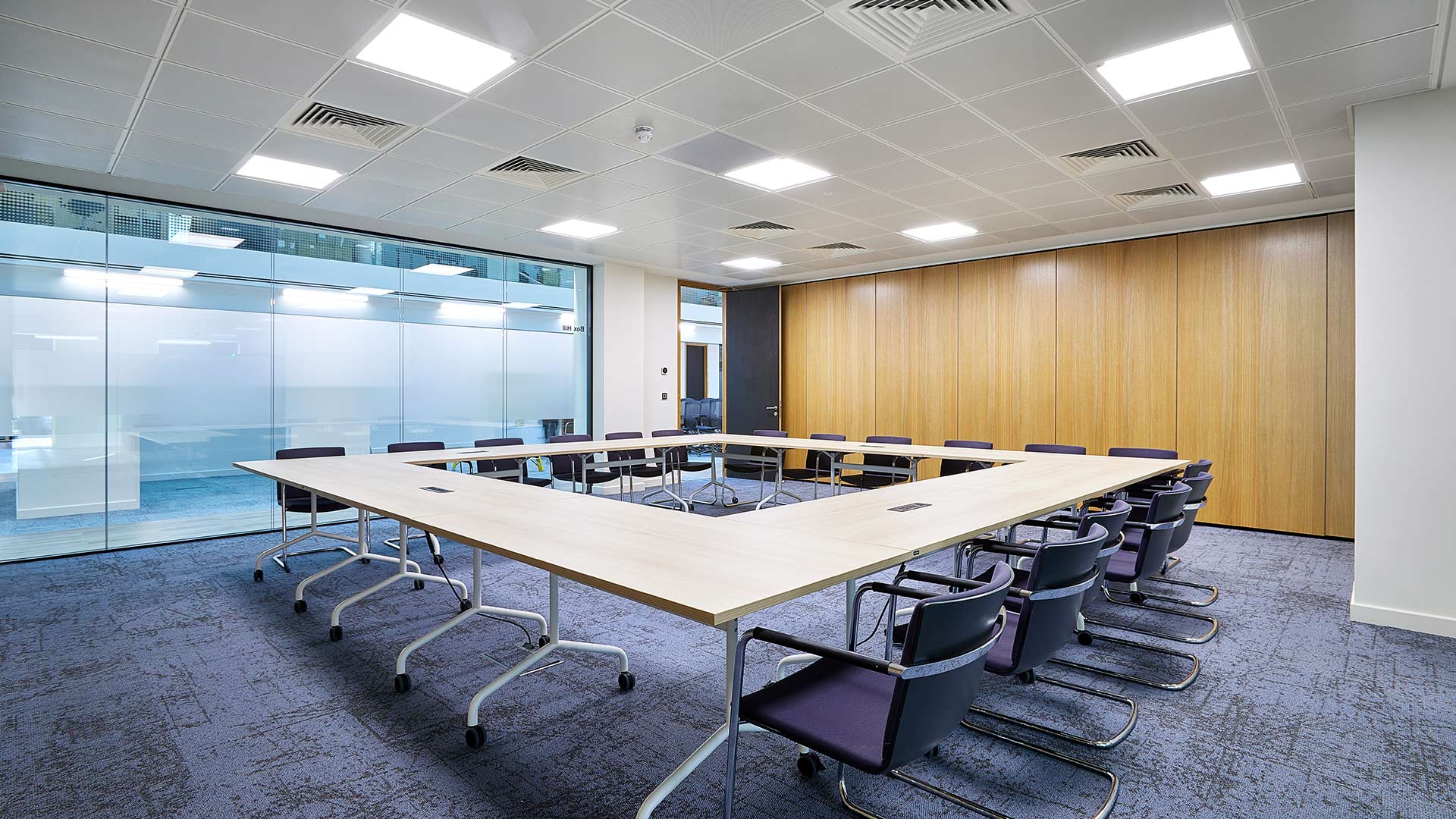

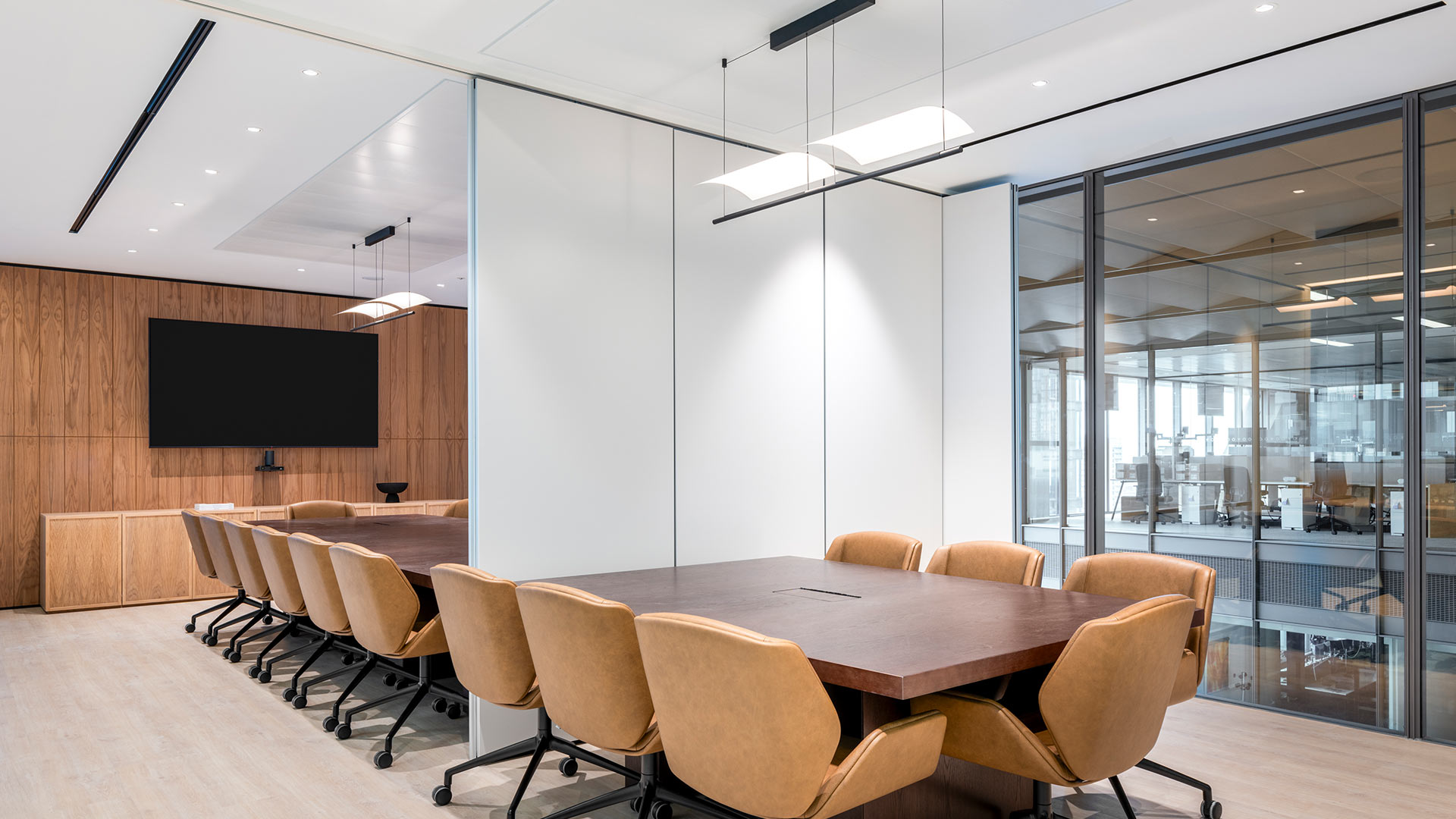

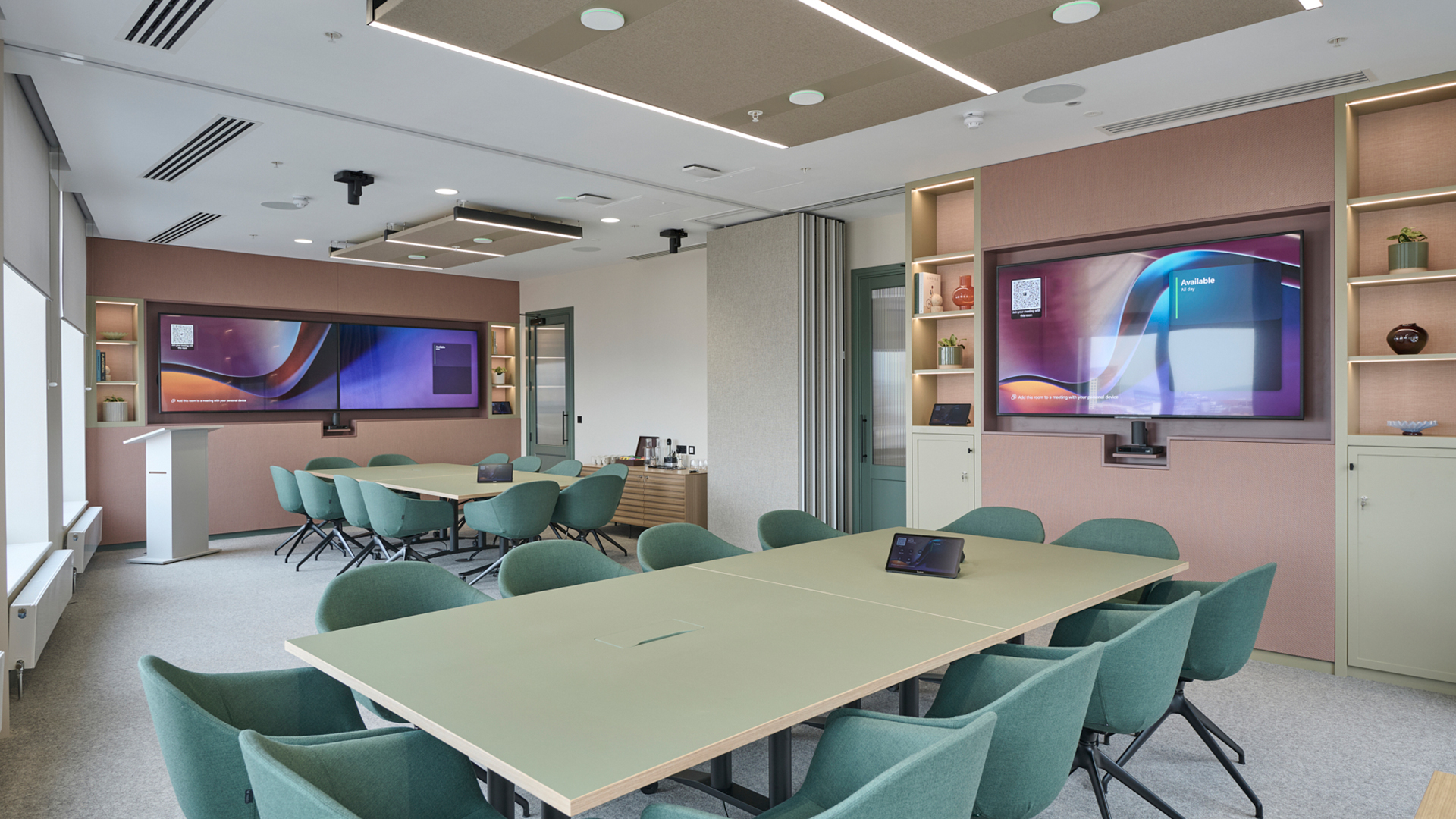

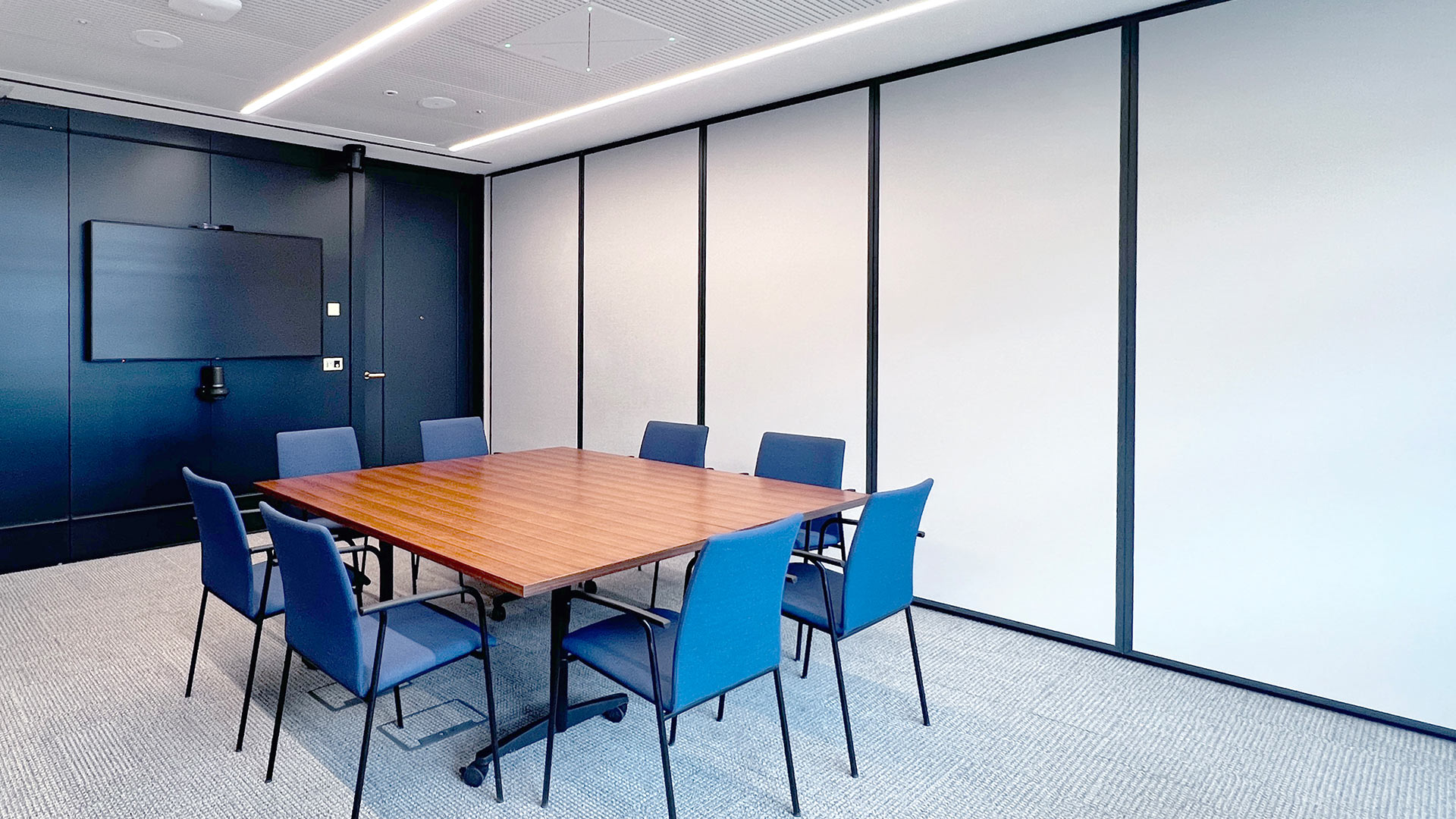

Gallery
Features

Height

Up to 10,000mm (higher on request)

Panel Width

Upto 1,250mm (wider on request)

Sound Reduction

Up to Rw 60dB

Movawall systems offer the highest level of acoustic ratings available. Sound reduction is achieved using dense cladding, adding internal insulation materials within the panels and by using deep seated mechanically operated retractable seals set to a high sealing pressure applied by worm screw drive and deep interlocking vertical seals.

Special panel surface finishes can help maintain or improve the acoustic qualities of existing sound conditions. Panel faces can vary from acoustically absorbent slotted boards to improve sound absorption levels of a room to the use of soft fabrics to control levels of noise reverberation. Our walls are constantly being developed and confirmed by recognised testing authorities to achieve higher acoustic levels and greater client satisfaction.

Walls are measured in accordance with DIN EN 20 140-3. Please contact our technical department for any assistance required and further information.

Panel Thickness

105mm

Suspension Method

Top hung, no floor track

Operation Mode

Manual, semi-electric or fully electric

Panel Type

Individual panel

Seal Type

Quick action worm screw drive/electric

Panel Construction

Steel twist resistant frame

Panel Weight

63kg/m2

Fireproof Qualities

• Class 1
• Class 0
• F30
• F60

Pass Door Panels

• Full Height
• Single Inset
• Double Inset

Usage

Internal and semi-external

Panel Edges

Exposed or concealed, SAA or powder coated

Panel Finishes

• Laminate
• HP Laminate
• Veneer
• Fabric
• Steel
• Whiteboard
• Magnetic whiteboard

Other Options

• Curved
• Glazed cut outs

Drawings
NBS Specification
Stacking Options

‘Z’ Track

‘EE’ Junction Panel with ‘K’ & ‘E’ Track

‘E’ Track

Double ‘K’ Track
DT Pass Door on ‘E’ Track

Inset Pass Door on ‘K’ Track

Offset ‘K’ Track
Remote ‘K’ Track
